美国原装进口CEC-RWC-18664(CA3613-000) 差分电缆，现货实价销售，可以直接拍
跨境包裹重量0.5 kg单位重量0.5 kg
| 是否进口 | 否 | 品牌 | TE | 型号 | CEC-RWC-18664(CA3613-000) |
| 货号 | TB-546044178130 | 材质 | 未找到匹配项 | 尺寸（宽度x长度） | 未找到匹配项（mm） |
| 颜色 | 620FT,325FT,283FT,280FT,250FT,224FT |
美国原装进口CEC-RWC-18664(CA3613-000) 差分电缆，现货实价销售，可以直接拍，请按照整根数量下单，不能裁切
整卷包含900FT 280FT（整根）+620FT(整根）
整卷包含1082FT 325FT（整根）+250FT(整根）+283FT（整根）+224FT(整根）
有需要请与我联系，谢谢 13641954905（微同号）
Catalog 1654012 Dimensions are in inches and Dimensions are shown for USA: 1-800-522-6752 South America: 55-11-2103-6000
Revised 4-08 millimeters unless otherwise reference purposes only. Canada: 1-905-470-4425 Hong Kong: 852-2735-1628
specified. Values in brackets Specifications subject Mexico: 01-800-733-8926 Japan: 81-44-844-8013
www.tycoelectronics.com are metric equivalents. to change. C. America: 52-55-1106-0803 UK: 44-8706-080-208

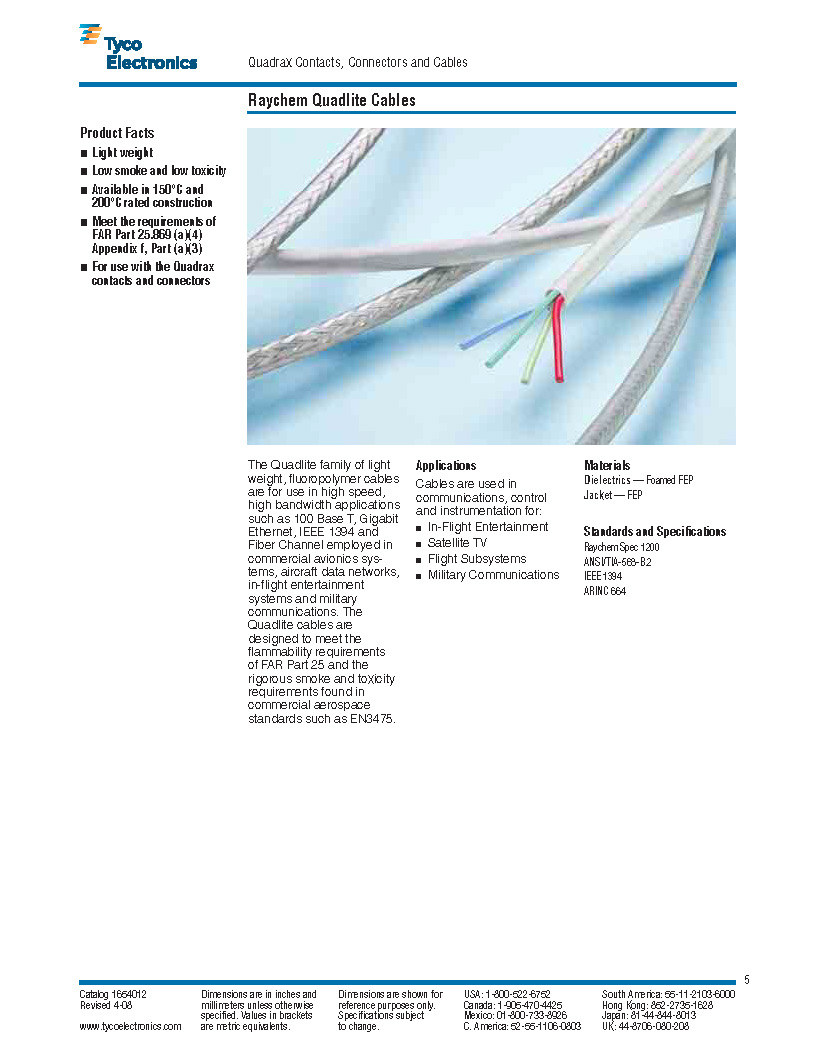

Raychem Quadlite Cables
Quadrax Contacts, Connectors and Cables
Product Facts
■ Light weight
■ Low smoke and low toxicity
■ Available in 150°C and
200°C rated construction
■ Meet the requirements of
FAR Part 25.869 (a)(4)
Appendix f, Part (a)(3)
■ For use with the Quadrax
contacts and connectors
The Quadlite family of light
weight, fluoropolymer cables
are for use in high speed,
high bandwidth applications
such as 100 Base T, Gigabit
Ethernet, IEEE 1394 and
Fiber Channel employed in
commercial avionics systems,
aircraft data networks,
in-flight entertainment
systems and military
communications. The
Quadlite cables are
designed to meet the
flammability requirements
of FAR Part 25 and the
rigorous smoke and toxicity
requirements found in
commercial aerospace
standards such as EN3475.
Applications
Cables are used in
communications, control
and instrumentation for:
■ In-Flight Entertainment
■ Satellite TV
■ Flight Subsystems
■ Military Communications
Materials
Dielectrics — Foamed FEP
Jacket — FEP
Standards and Specifications
Raychem Spec 1200
ANSI/TIA-568-B.2
IEEE 1394
ARINC 664
6
Catalog 1654012 Dimensions are in inches and Dimensions are shown for USA: 1-800-522-6752 South America: 55-11-2103-6000
Revised 4-08 millimeters unless otherwise reference purposes only. Canada: 1-905-470-4425 Hong Kong: 852-2735-1628
specified. Values in brackets Specifications subject Mexico: 01-800-733-8926 Japan: 81-44-844-8013
www.tycoelectronics.com are metric equivalents. to change. C. America: 52-55-1106-0803 UK: 44-8706-080-208

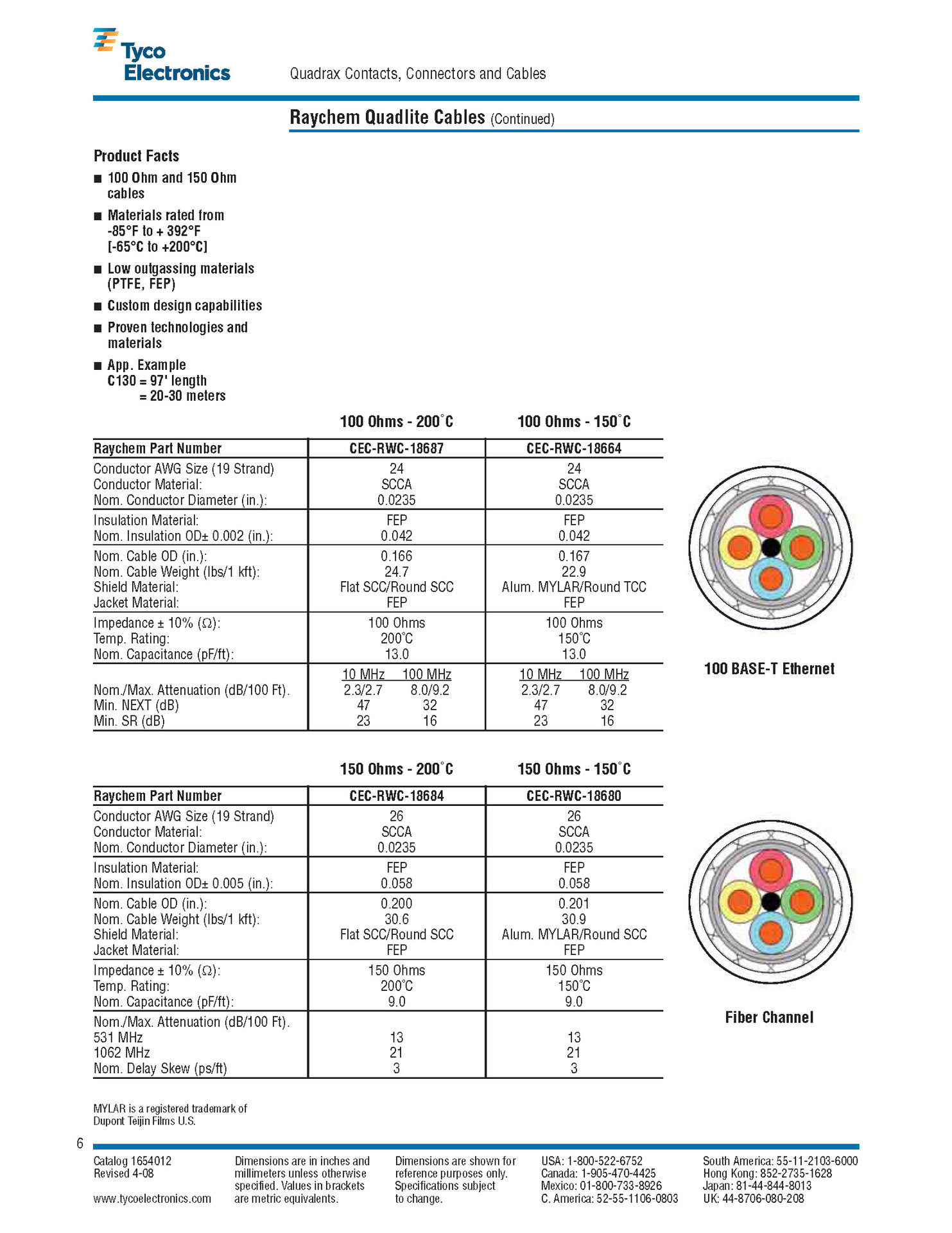

Raychem Quadlite Cables (Continued)
Quadrax Contacts, Connectors and Cables
Product Facts
■ 100 Ohm and 150 Ohm
cables
■ Materials rated from
-85°F to + 392°F
[-65°C to +200°C]
■ Low outgassing materials
(PTFE, FEP)
■ Custom design capabilities
■ Proven technologies and
materials
■ App. Example
C130 = 97' length
= 20-30 meters
100 Ohms - 200°C 100 Ohms - 150°C
Raychem Part Number CEC-RWC-18687 CEC-RWC-18664
Conductor AWG Size (19 Strand) 24 24
Conductor Material: SCCA SCCA
Nom. Conductor Diameter (in.): 0.0235 0.0235
Insulation Material: FEP FEP
Nom. Insulation OD± 0.002 (in.): 0.042 0.042
Nom. Cable OD (in.): 0.166 0.167
Nom. Cable Weight (lbs/1 kft): 24.7 22.9
Shield Material: Flat SCC/Round SCC Alum. MYLAR/Round TCC
Jacket Material: FEP FEP
Impedance ± 10% (Ω): 100 Ohms 100 Ohms
Temp. Rating: 200°C 150°C
Nom. Capacitance (pF/ft): 13.0 13.0
10 MHz 100 MHz 10 MHz 100 MHz
Nom./Max. Attenuation (dB/100 Ft). 2.3/2.7 8.0/9.2 2.3/2.7 8.0/9.2
Min. NEXT (dB) 47 32 47 32
Min. SR (dB) 23 16 23 16
100 BASE-T Ethernet
Fiber Channel
150 Ohms - 200°C 150 Ohms - 150°C
Raychem Part Number CEC-RWC-18684 CEC-RWC-18680
Conductor AWG Size (19 Strand) 26 26
Conductor Material: SCCA SCCA
Nom. Conductor Diameter (in.): 0.0235 0.0235
Insulation Material: FEP FEP
Nom. Insulation OD± 0.005 (in.): 0.058 0.058
Nom. Cable OD (in.): 0.200 0.201
Nom. Cable Weight (lbs/1 kft): 30.6 30.9
Shield Material: Flat SCC/Round SCC Alum. MYLAR/Round SCC
Jacket Material: FEP FEP
Impedance ± 10% (Ω): 150 Ohms 150 Ohms
Temp. Rating: 200°C 150°C
Nom. Capacitance (pF/ft): 9.0 9.0
Nom./Max. Attenuation (dB/100 Ft).
531 MHz 13 13
1062 MHz 21 21
Nom. Delay Skew (ps/ft) 3 3
MYLAR is a registered trademark of
Dupont Teijin Films U.S.
